Create WebSocket Request

Creating a WebSocket request in Bruno allows you to establish real-time connections and test bidirectional communication with WebSocket servers.

Creating a WebSocket Request

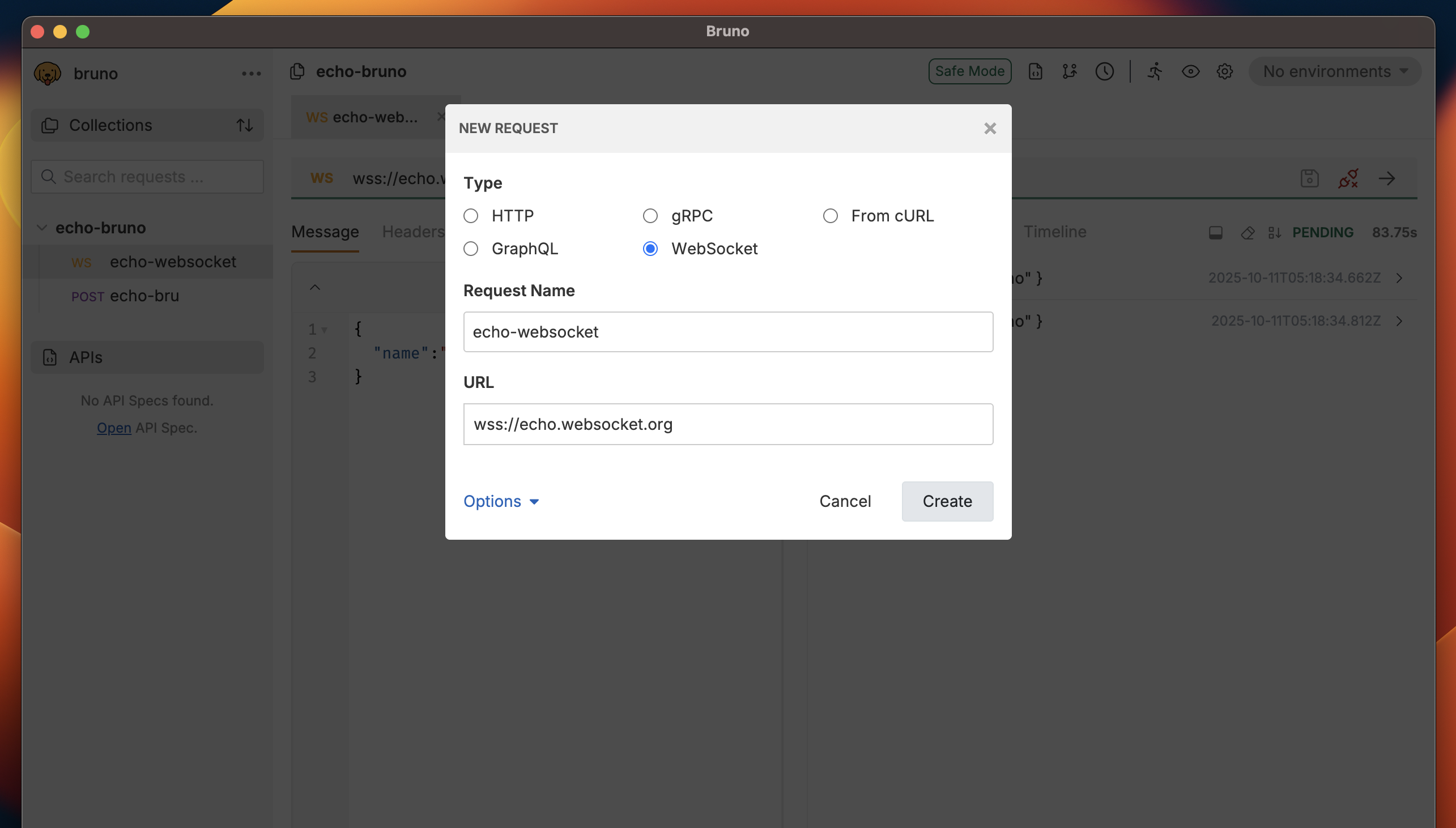

Step 1: Add New Request

1. Open your collection in Bruno
2. Right-click on the collection or folder where you want to add the request
3. Select “New Request” from the context menu
4. Choose “WebSocket” as the request type

Step 2: Configure WebSocket URL

1. Enter the WebSocket URL in the address bar
   • Use ws:// for unsecured connections
   • Use wss:// for secured connections (recommended for production)

Example URLs:

wss://echo.websocket.org

Step 3: Configure Headers

1. Click the Headers tab
2. Add custom headers as needed:
   • Authorization: Bearer tokens, API keys
   • Custom Headers: Any additional metadata
   • User-Agent: Custom user agent strings

Common Headers:

Authorization: Bearer your-token-here
X-API-Key: your-api-key
User-Agent: Bruno-WebSocket-Client

Step 4: Set Connection Options

1. Click the Settings tab
2. Configure connection settings:

Connection Timeout

• Set the maximum time to wait for connection establishment
• Default: 30 seconds
• Range: 1-300 seconds

Auto-reconnect

• Enable automatic reconnection on connection loss
• Useful for testing resilient WebSocket implementations

Step 5: Configure Subprotocols (Optional)

Bruno supports WebSocket subprotocols, allowing you to specify the application-level protocol to use over the WebSocket connection.

Setting a Subprotocol

WebSocket subprotocols enable your client to specify which protocol variant it wants to use. To set a subprotocol in Bruno:

• Add the Sec-WebSocket-Protocol header in the Headers tab
• Specify one or multiple subprotocols

Example:

Sec-WebSocket-Protocol: mqtt, wamp

Setting WebSocket Version

You can specify the WebSocket protocol version using the Sec-WebSocket-Version header. This is useful when testing compatibility with servers that support multiple WebSocket versions:

Sec-WebSocket-Version: 13

WebSocket protocol version 13 (RFC 6455) is the current standard. Most modern servers use this version by default.

Server Rejections

If the server doesn’t support the requested subprotocol or version:

• The connection will be rejected
• You’ll see a 400 Bad Request response
• Check the response details to understand why the server rejected the connection

Advanced Header Overrides

Bruno allows you to override other Sec-WebSocket-* headers if needed for testing specific scenarios:

• Sec-WebSocket-Key: Custom key for handshake (auto-generated by default)
• Sec-WebSocket-Extensions: Specify compression or other extensions

Simply add these headers in the Headers tab like any other custom header.
